Implement an ASGI compatible HTTP/2 server in Python

About HTTP/1.1 và HTTP/2

HTTP/2 is a method for packaging, transmitting, and receiving HTTP packets over the TCP protocol to improve performance compared to HTTP/1.1. In HTTP/1.1, each transaction (consisting of a request and response) uses a separate connection. Later, the protocol was improved to allow multiple transactions to share a single connection — this was called HTTP Pipelining. However, this improvement was generally inefficient in terms of transmission, as transactions had to follow a strict order — if one earlier transaction was delayed, subsequent ones had to wait. That said, HTTP Pipelining still helped reduce the number of handshakes between the client and server.

Some improvements in HTTP/2 that I find significantly more important and effective than HTTP/1.1:

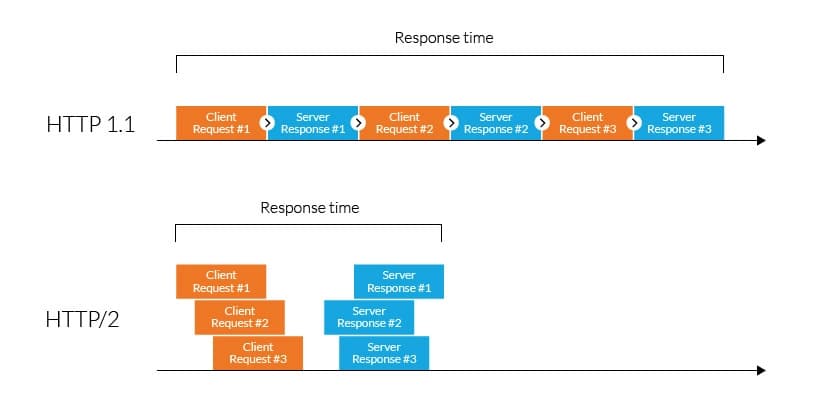

1. Multiplexing via Streams: Solves the Head-of-Line Blocking problem by allowing multiple independent request/response pairs to coexist on a single connection. In HTTP/1.1, responses must be sent in the same order as the corresponding requests. Even if a later response is ready, it has to wait for the previous one to finish. HTTP/2 removes this constraint by breaking transactions into smaller units called frames. Each transaction is referred to as a stream, and each stream consists of multiple frames. This allows multiple frames from different streams to be transmitted concurrently over a single connection.

2. Header Compression (HPACK): Significantly reduces overhead caused by repetitive HTTP headers. In HTTP/1.1, headers often repeat across requests—especially when loading multiple resources like CSS, JS, and images from the same server—causing unnecessary overhead. HPACK not only compresses headers but also mitigates this redundancy by maintaining a dynamic table shared between the client and server. For example, when the “Host” header is sent the first time, it is stored in the table on both ends. In subsequent requests, instead of resending the entire “Host” header, the sender can simply refer to its index in the table.

3. Server Push: Allows the server to proactively send resources that the client is likely to need, reducing latency and avoiding unnecessary round-trip handshakes. This anticipatory behavior helps optimize page loads by delivering assets (like CSS or JS files) before the browser explicitly requests them.

Here are some of my observations about HTTP/1.1 and HTTP/2:

• HTTP/1.1 transmits packets in text format, whereas HTTP/2 uses a binary format.
• HTTP/1.1 supports pipelining to reuse connections and reduce the number of handshakes. However, its transmission efficiency is limited due to the need to preserve the order of transaction processing — if one transaction is delayed, the subsequent ones must wait. HTTP/2 addresses this by breaking each transaction into multiple frames, adding metadata, and applying data compression, thereby eliminating the ordering constraint.
• HTTP/2 uses additional metadata, so each packet is generally larger than in HTTP/1.1. Moreover, HTTP/2 performs multiple acknowledgment (ACK) responses during transmission to ensure that the client and server correctly exchange packets belonging to each transaction.
• In terms of transmission performance, HTTP/2 outperforms HTTP/1.1. However, for applications that are heavy on server-side processing, the performance difference between the two versions is not very significant. Therefore, HTTP/2 is often preferred for data-centric applications such as file storage services, static websites, and so on.

About ASGI

ASGI stands for Asynchronous Server Gateway Interface. It is an interface that allows web servers to communicate with asynchronous web applications in Python. If you've written backend web applications in Python 6–8 years ago (using frameworks like Flask or Django), you might be familiar with another interface called WSGI – Web Server Gateway Interface. One of the popular web servers compatible with that interface is Apache HTTP Server via the uWSGI module.

The key difference between these two interfaces lies in the request handling model: ASGI supports asynchronous processing using an event loop model, while WSGI handles requests concurrently using a multithreading model.

However, using multithreading to handle I/O-bound tasks is not truly efficient — this is the core issue highlighted in the C10K problem. A classic example of a more efficient approach is Nginx, which uses an asynchronous model, in contrast to Apache HTTP Server, which relies on the traditional multithreading model.

Before ASGI emerged, some frameworks had already adopted an asynchronous approach, such as Tornado. However, due to the lack of a standard interface, developing and using asynchronous frameworks was challenging and lacked compatibility. ASGI was introduced to solve that problem.

Basically, ASGI uses coroutines in Python to handle each request, coordinated through an event loop. Events for sending and receiving data over sockets are handled in a non-blocking manner.

When the server receives an incoming packet, it emits an event to the application. Conversely, when the application needs to send a response (including streaming responses), it emits an event for the server to handle and transmit through the socket.

For those unfamiliar, an event loop is a mechanism used to manage and coordinate execution units based on asynchronous events, such as tasks related to networking or the filesystem.

Implementing a Web Server in Python

In this demo, I implemented both protocols: HTTP/1.1 and HTTP/2. The web server is designed to use multiple processes to better utilize resources on multi-core CPU systems, aiming to improve processing performance.

Now, let's dive into the detailed implementation. Note: in this article, I only include important code snippets to explain the key technical aspects. If you want to see the full source code, please refer to the following repo: python-webserver-tutorial

Create a listening socket

self.sock = socket.create_server(
    address=(host, port),
    family=socket.AF_INET,
    backlog=self.backlog or 4096,
    reuse_port=True,
)

os.set_inheritable(self.sock.fileno(), True)

The create_server function is a utility function used to create a listening socket for the server. The reuse_port parameter is a flag that allows multiple sockets to bind to the same port.

To better understand how this mechanism works, let’s look at the line that follows.

os.set_inheritable(self.sock.fileno(), True) allows the socket to be inherited by child processes. Thanks to the reuse_port flag, copies of this socket can bind to the same port.

This is a crucial mechanism in the master-worker model of a web server, where the master process creates the listening socket and the worker processes inherit that socket to handle incoming connections concurrently.

The master process creates the listening socket and then spawns the child processes. These child processes inherit the socket from the parent process, and all of them listen on the same port.

So what happens when a packet is sent to that port?

Unix-like operating systems such as Linux have an internal load-balancing mechanism to handle this situation.

Remember this familiar syscall?

while 1 {
    connect_socket = accept(listen_socket)
}

accept will block until a connection is made to the socket — that is, when a request is sent to the server.

So, which child process's socket will be chosen to handle this connection?

The kernel creates a hash value based on the client's IP and port, then selects a process based on that hash. Thanks to this mechanism, requests from the same client are often handled by the same process, naturally creating a session-sticky effect.

With that, we've completed the setup of the server and workers. Next, we’ll move on to handling each socket connection when a request arrives from the client.

At this step, instead of handling requests in parallel using threads, we'll handle them asynchronously with an event loop.

Python’s asyncio module standardizes how network protocols are defined, and personally, I find it extremely effective and helps keep the code very clean.

In asyncio, defining a network protocol is split into two parts, corresponding to two classes: BaseTransport and BaseProtocol.

• BaseTransport is responsible for transmitting packets over the network — it answers the question: how are bytes of data transmitted? In other words, BaseTransport operates at Layer 4 (Transport layer) of the OSI model. In asyncio, there are various types of transports such as TCP, UDP, WriteTransport, ReadTransport, etc.

• BaseProtocol is responsible for defining the communication rules between two parties in a connection — that is, it operates at Layer 7 (Application layer). Common protocols at this layer include: HTTP, JSON-RPC, gRPC, IMAP, POP3, etc.

In this case, we’ll use the default Transport class in asyncio for TCP connections and implement two separate protocols for HTTP/1.1 and HTTP/2, based on asyncio’s Protocol class.

Additionally, to build a web server that is compatible with modern frameworks like FastAPI, you should also learn more about ASGI. The official documentation can be found here: https://asgi.readthedocs.io/en/latest/index.html

First, we’ll implement H1Protocol to handle the HTTP/1.1 protocol.

class H1Protocol(asyncio.Protocol):
    def __init__(self, app):

        # app is an async callable following the ASGI specification, used to handle each request
        self.app = app

        # For HTTP/1.1, I use llhttp, a high-performance HTTP parser from Node.js, to parse requests via `httptools`.
        # This parser takes an object with methods like on_url, on_body, on_header, and on_header_complete.
        # These methods are called internally by the parser during the message parsing process.
        # In this example, for simplicity, I combine it directly with H1Protocol.
        self.parser = httptools.HttpRequestParser(self) #type: ignore

        # task is used to handle the request from the moment it is received
        # until the `app` sends back a response
        self.task: asyncio.Task = None

        # event is used to notify the application when data arrives at the socket,
        # allowing the application to proceed with reading it
        self.message_event = asyncio.Event()

    def connection_lost(self, exc: Exception | None) -> None:
        if self.task and not self.task.done():
            self.task.cancel('Lost connection')

    def data_received(self, data: bytes) -> None:
        self.parser.feed_data(data)

    def on_headers_complete(self):
        self.method = self.parser.get_method()
        self.http_version = self.parser.get_http_version()

        scope = self.make_scope()
        cycle = RequestLifeCycle(scope, self.app, self.transport.write, self.message_event)
        self.cycle = cycle

        # Create a task to handle the request according to the RequestLifeCycle,
        # which is equivalent to spawning a thread to handle each request
        # in a multithreaded architecture
        task = asyncio.create_task(cycle.run())
        task.add_done_callback(self.on_done)
        self.task = task

    def on_body(self, body: bytes):
        # When the socket has data and is ready to be read
        self.cycle.body = body #type: ignore
        self.message_event.set()

    # ---------------- Extra ---------------------
    def on_done(self, _: asyncio.Task):
        # Keep the connection alive to reuse it for subsequent transactions
        if not self.parser.should_keep_alive():
            self.transport.close()

Next, we’ll continue by implementing H2Protocol for HTTP/2

class H2Protocol(asyncio.Protocol):

    # Since multiple HTTP/2 streams (transactions) are handled on the same connection,
    # we need a table to store information about each stream (RequestContext),
    # using stream_id as the key
    streams: t.Dict[int, "RequestContext"]

    ...

    def connection_made(self, transport: asyncio.BaseTransport) -> None:
        ...

        self.conn.initiate_connection()

        # Any action in the HTTP/2 protocol requires an ACK,
        # including the successful establishment of a connection,
        # which is not necessary in HTTP/1.1
        self.transport.write(self.conn.data_to_send())

        ...

    def data_received(self, data: bytes) -> None:
        # The frames packaged and sent by the client are received by the server
        # and processed here. We feed each chunk of data into the parser from the `h2` library
        # and extract readable events.
        # Each event has a type, such as:
        # - RequestReceived: all headers are received, equivalent to on_header_complete
        # - DataReceived: HTTP body data is received, equivalent to on_body
        # - StreamEnded: a stream (transaction) is complete; note: this is not the same as closing the connection
        # - ...
        try:
            events = self.conn.receive_data(data)

        except h2.exceptions.ProtocolError:
            self.transport.write(self.conn.data_to_send())
            self.transport.close()

        else:
            self.transport.write(self.conn.data_to_send())

            for event in events:
                if isinstance(event, h2.events.RequestReceived):
                    self.request_received(event.headers, t.cast(int, event.stream_id))

                elif isinstance(event, h2.events.DataReceived):
                    self.receive_data(event.data, t.cast(int, event.stream_id))

                elif isinstance(event, h2.events.StreamEnded):
                    self.stream_complete(t.cast(int, event.stream_id))

                elif isinstance(event, h2.events.ConnectionTerminated):
                    self.transport.close()

                elif isinstance(event, h2.events.StreamReset):
                    self.stream_reset(t.cast(int, event.stream_id))

                elif isinstance(event, h2.events.WindowUpdated):
                    self.window_updated(event.stream_id, event.delta)

                elif isinstance(event, h2.events.RemoteSettingsChanged):
                    if h2.settings.SettingCodes.INITIAL_WINDOW_SIZE in event.changed_settings:
                        self.window_updated(None, 0)

                self.transport.write(self.conn.data_to_send())

    def request_received(self, headers: t.List[hpack.HeaderTuple] | None, stream_id: int):
        ...

        # Just like with H1Protocol, we will start creating and running the application
        # to handle the request here.
        message_event = asyncio.Event()
        scope = self.make_scope()
        cycle = RequestLifeCycle(
            scope=scope,
            app=self.app,
            message_event=message_event,
        )
        request_context = RequestContext(stream_id, cycle, message_event, self)
        self.streams[stream_id] = request_context
        ctx.set(request_context)
        task = asyncio.create_task(cycle.run())
        request_context.task = task

    def receive_data(self, data: bytes | None, stream_id: int):
        if not data:
            return

        # When request body data is available, notify the event so the application can process it
        request_context = self.streams[stream_id]
        request_context.cycle.body = data
        request_context.message_event.set()

    def stream_complete(self, stream_id: int):
        # clean up stream
        self.streams.pop(stream_id)

    def stream_reset(self, stream_id: int):
        request_context = self.streams[stream_id]
        if request_context.flow_control:
            request_context.flow_control.cancel()
            request_context.flow_control = None

    def window_updated(self, stream_id: int | None, delta: int | None):
        # This is an important part in HTTP/2. HTTP/2 maintains a window
        # to inform the application when it is allowed to write response data
        # to the socket.
        # We use an asyncio.Future to notify the application
        # when it can write data to the socket and how many bytes can be written
        # (as implemented in the `send_data` function below)

        if stream_id and stream_id in self.streams:
            request_context = self.streams[stream_id]
            f = request_context.flow_control
            f.set_result(delta) #type: ignore

        elif not stream_id:
            for context in self.streams.values():
                if context.flow_control:
                    context.flow_control.set_result(delta)
                    context.flow_control = None

    async def send_data(self, data: bytes, stream_id: int):
        while data:
            while self.conn.local_flow_control_window(stream_id) < 1:
                try:
                    # Wait until data can be written to the socket
                    await self.wait_for_flow_control(stream_id)
                except asyncio.CancelledError:
                    return data

            chunk_size = min(
                self.conn.local_flow_control_window(stream_id),
                len(data),
                self.conn.max_outbound_frame_size,
            )

            try:
                self.conn.send_data(
                    stream_id,
                    data[:chunk_size],
                    end_stream=(chunk_size == len(data)),
                )
            except (h2.exceptions.StreamClosedError, h2.exceptions.ProtocolError):
                break

            self.transport.write(self.conn.data_to_send())
            data = data[chunk_size:]

    async def wait_for_flow_control(self, stream_id):
        f = asyncio.Future()
        self.streams[stream_id].flow_control = f
        await f

Everything is set. Now, we’ll combine the two protocols to create a complete web server and run a benchmark to see the difference between the two protocols.

class Server:
    def run(self):
        """Important!!! Only run in the main process"""

        self.sock = self.config.sock
        host, port = self.config.socket.getsockname() #type: ignore

        self.logger.info(f"Server is starting at {host}:{port}")
        if self.config.workers is None:

            # By default, Python’s event loop performs suboptimally,
            # so I use `libuv` (an event loop used in Node.js)
            # to achieve better performance.
            import uvloop
            uvloop.install()
            asyncio.run(self.serve(self.config.socket))
            return

        from .worker import Worker
        for _ in range(self.config.workers):
            worker = Worker(self.app_factory, self.config)
            worker.run()
            self.workers.append(worker)

        for worker in self.workers:
            worker.join()

    async def serve(self, sock: socket.socket):
        self.logger.info(f"Worker {self.pid} is running...")

        loop = asyncio.get_running_loop()
        _server = await loop.create_server(
            # Each time a client establishes a connection to the server,
            # the server creates a protocol instance using the `protocol_factory` function
            protocol_factory=self.create_protocol,
            sock=sock,

            # With HTTP/2, SSL is mandatory. This requirement is becoming increasingly
            # common among web browsers and web servers.
            ssl=self.config.get_ssl(),
        )
        await _server.serve_forever()

    def create_protocol(
        self,
        _: asyncio.AbstractEventLoop | None = None,
      ) -> asyncio.Protocol:

        if self.config.enable_h2:
            return H2Protocol(self.app)

        return H1Protocol(self.app)

Benchmark

To perform the benchmark, I used two different tools:

• wrk for HTTP/1.1
• h2load for HTTP/2, since wrk does not support this protocol

The application used for testing is a basic FastAPI app — generally sufficient to evaluate the transmission performance between the two protocols.

app = FastAPI()

@app.get('/')
async def index():
    return {
        "name": "nkthanh.dev",
        "age": 18,
        "address": "Hanoi, Vietnam"
    }

The benchmark parameters I used are as follows:

- Duration: 10 seconds
- Number of connections: 8
- Number of clients: 8

Here is the command you can use to benchmark with the above parameters:

wrk -t 8 -c 8 -d 10s https://127.0.0.1:5001

h2load --threads 8 --clients 8 --duration 10 https://127.0.0.1:5001

Here are the benchmark results on my machine: MacBook Pro M2, 16GiB RAM, 8 cores

The results show that HTTP/2 delivers about 50% higher transmission performance compared to HTTP/1.1 — of course, this is under the basic configuration used in this test.
